3D Scanners
Structure Sensor Mark II
Digitalize with total freedom with Structure Sensor Mark II, the first 3D sensor for mobile devices. Structure Sensor Mark II and CapteviaPlus are a portable acquisition solution for orthopaedic professionals. Attached to an iPad, this 3D sensor becomes a 3D scanner for on-site patient scans.
Structure Sensor Mark II
Structure Sensor Mark II
Structure Sensor Mark II

Structure Sensor Mark II + CapteviaPlus, a portable, versatile and easy-to-use solution for 3D digitalization of the human body.

Structure Sensor Mark II is the first of its kind applied for orthopaedics.
Attached to an iPad, this 3D sensor turns your tablet into a 3D scanner for your patients. It is portable and works without cables or PC. No training needed.

Compact and highly accurate: +/- 4 mm at a distance of approximately 40 cm. Its infrared technology is safe and painless (Class 1 laser).
CapteviaPlus application, designed especially for the orthopaedic industry makes Structure Sensor Mark II even more efficient. The two combined provide a complete, portable and affordable digitalization solution.
Access to the CapteviaPlus application remains available to all clients still using Structure Sensor Mark I.



Benefits

Structure Sensor Mark II is easy to learn and practical for use by any team of professionals.

01

Light and compact

The sensor + iPad together weigh less than 450 grams. Ultra-portable and adapted for travel. The ideal mobile tool.

02

Accurate

Structure Sensor scans from a distance of 40 cm (accuracy +/-4 mm). Easy to handle for taking 3D measurements.

03

Compatible with CapteviaPlus

Structure Sensor Mark II works with CapteviaPlus application, both developed by Rodin 4D and specifically designed for the orthopaedic industry. Together, they are an affordable and portable digitalization solution.

04

Highly performant

Its infrared technology (Class 1 laser) is industry widely recognized as safe and painless with outstanding performance.

SOFTWARE AND APPLICATIONS

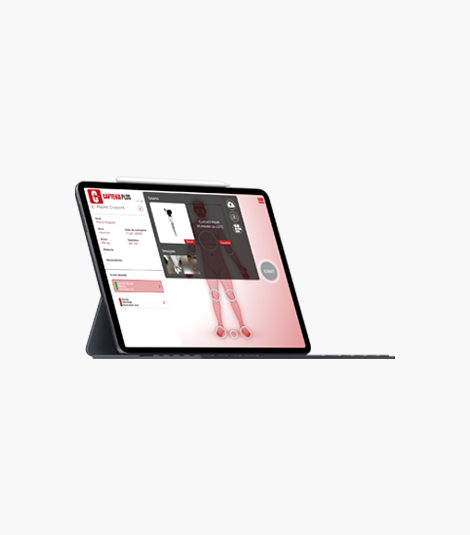

CapteviaPlus with Structure Sensor for a unique digitalization experience

Simple interface
Intuitive / scanning navigation in less than 3 clicks.

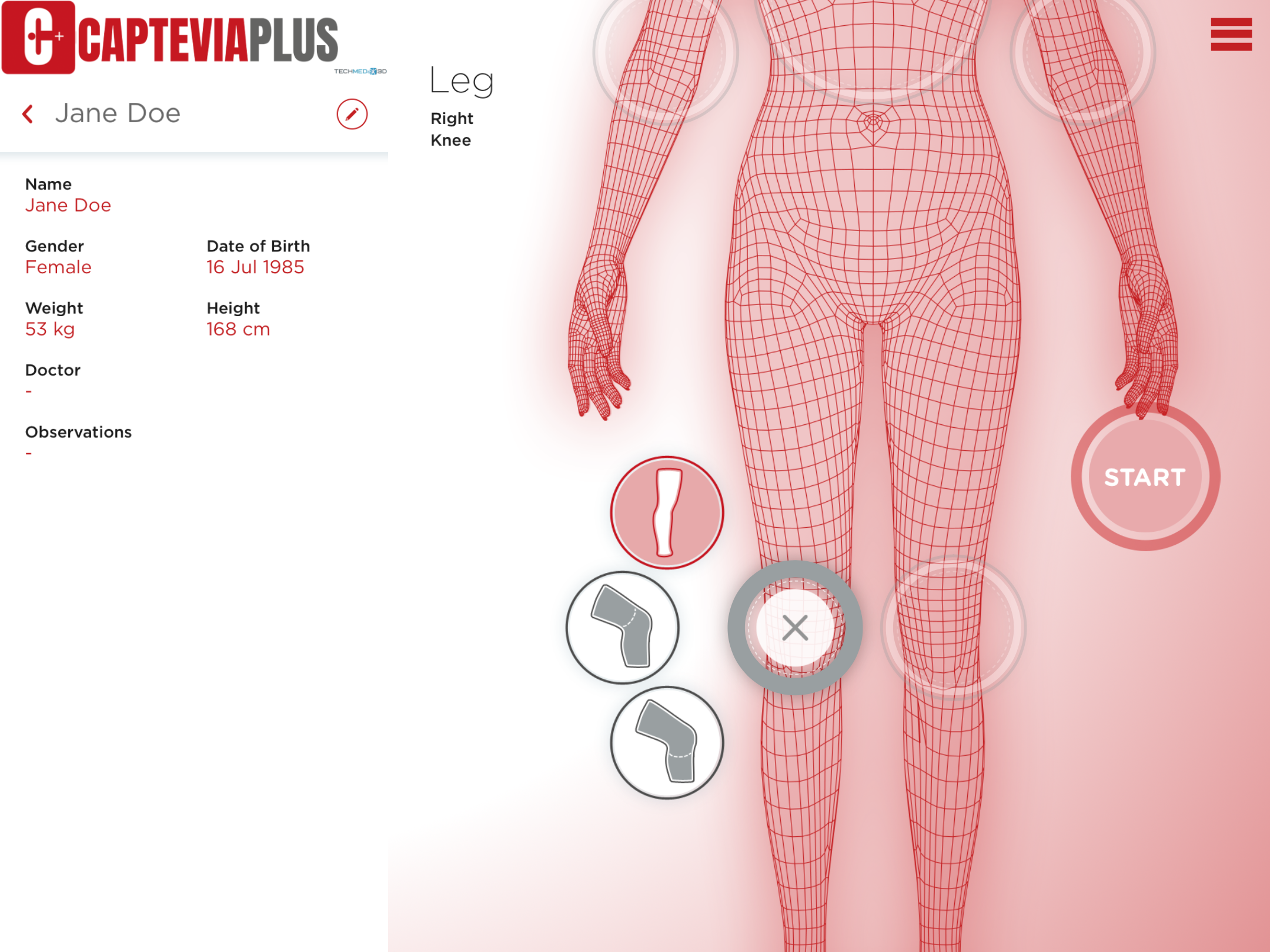

Higher precision scans
Specific selection of the parts of the body to be scanned for even more precise results.
Automatic scanning
No adjustments needed to get started / predefined integrated configuration optional according to type of scan.

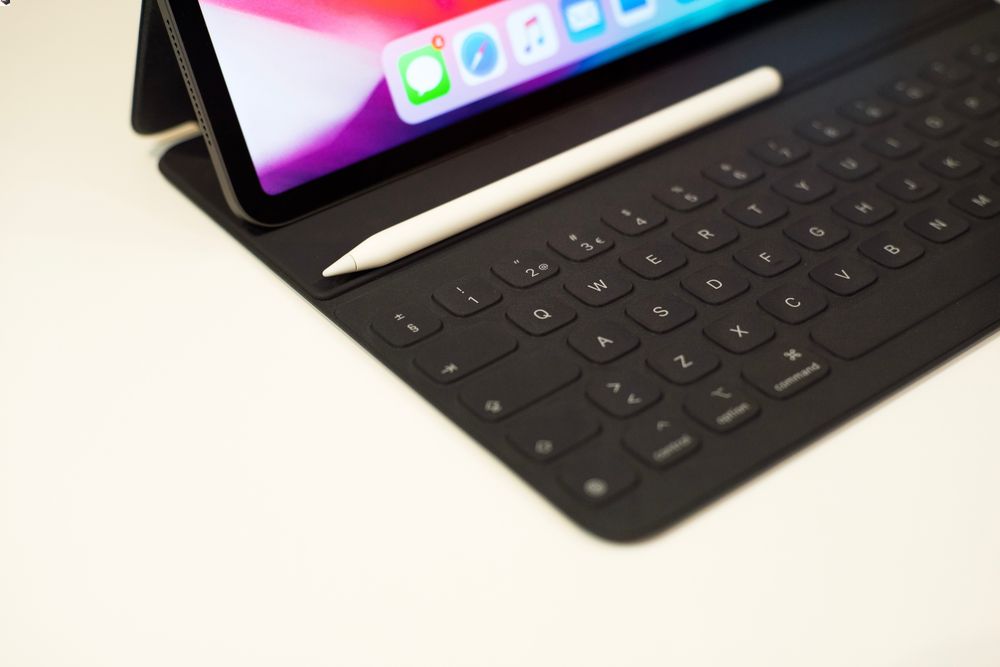

Saved locally
Files are saved directly on the iPad, in full compliance with the GDPR.
Specifications
Technology

High quality IMU / extra-wide-angle camera

Weight

500 g

Connection

USB 2.0

Production capacities
Corsets

1.5 min

KAF orthoses

3 min

Seats

1 min

Tibial prostheses

Not recommended

Upper limbs

2 min

Cervical orthoses

2 min

Foam layers

1 min

Knee braces

2 min

Foot orthoses

15 s
